    Key feature

    You have the choice

    • Heparin or citrate anticoagulation – multiFiltrate Ci-Ca® offers both options
    • Disposables tailored to your treatment – saves costs

    Our experienced staff and tested and proven training concept support you with initial and ongoing training.

    key features

    multiFiltrate acute therapy options
    • Ci-Ca® CVVHD
    • Ci-Ca® CVVHD EMiC®2
    • Ci-Ca® postCVVHDF
    • CVVHD
    • CVVHD EMiC®2
    • CVVHDF
    • CVVH
    • Pre-Post CVVH
    • MPS
    • SCUF
    • HP
    • Pediatric CVVH / CVVHD
    multiFiltrate Ci-Ca® contains

    • 6 roller tube pumps
    • 2 integrated heating systems for solutions
    • 1 integrated heparin pump
    • 1 robust and highly accurate weighing system

    multiFiltrate acute therapy machine with Ci-Ca®
    multiFiltrate acute therapy machine with Ci-Ca®

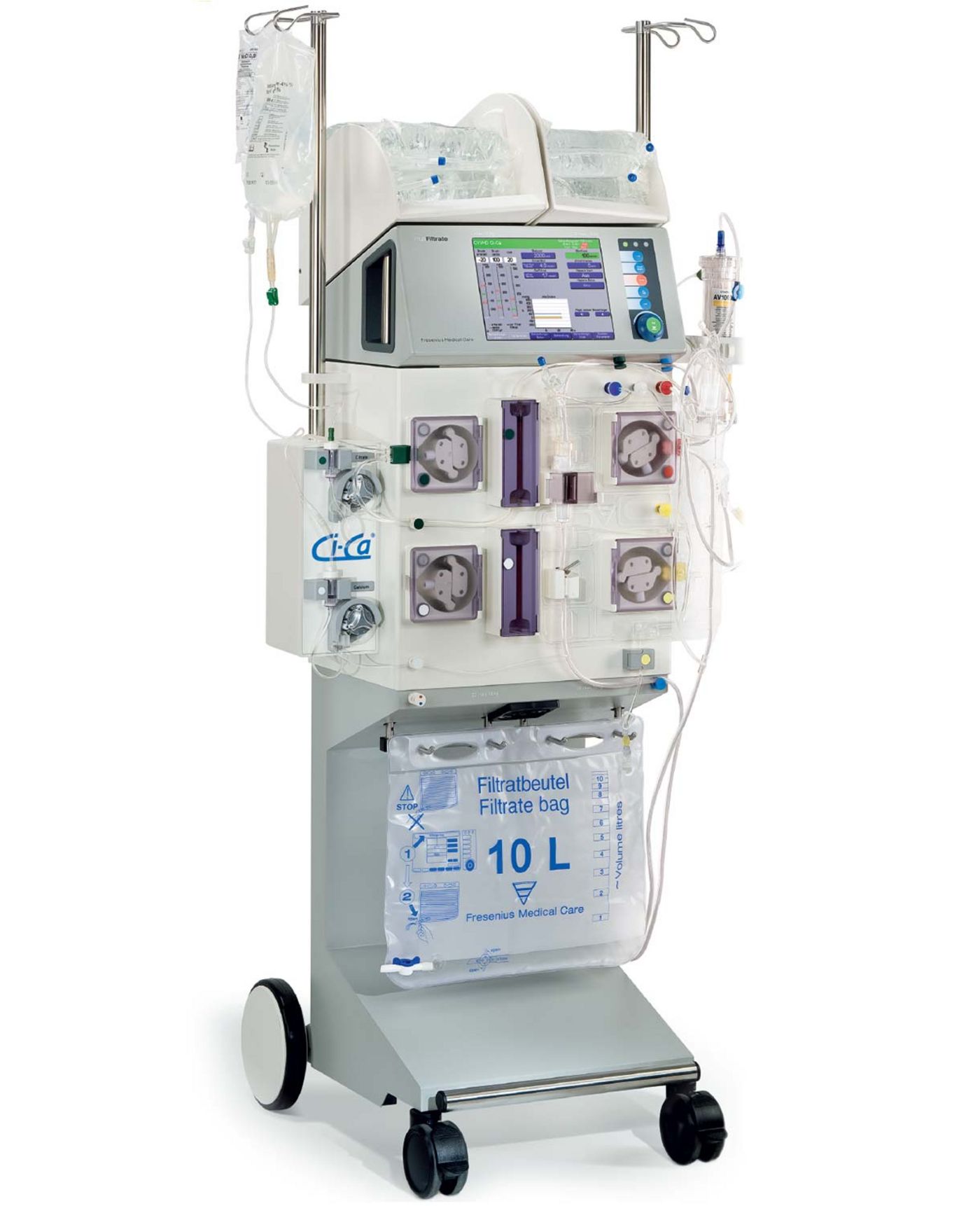

    multiFiltrate acute therapy machine with Ci-Ca® module

    Overview

    Simple handling

    • Cassette system for blood and filtrate tubing
    • Color-coded tubing systems
    • Ci-Ca® module for regional citrate anticoagulation
    • Step-by-step screen instructions lead the user through the preparation phase

    Reliable, even in difficult situations
    • In the case of an alarm, the multiFiltrate assists you in finding possible causes, automatically.
    • It makes reasonable recommendations on how to address the fault as quickly as possible
    • Up to 3,500 treatment-related parameters and events can be stored during treatment
    Safe and easy bag change
    • The scales can be loaded with up to 24 kg of fresh substitution or dialysate solution
    • Safe: Color-coded connectors for dialysate and substituate fluids guide the user to avoid mix-up of bags
    • Easy: Load more than one bag at the same time on each upper scale
    • Citrate infusion continues during regular dialysate, substituate and filtrate bag changes contributing to:
      • Less clotting
      • Longer filter lifespan

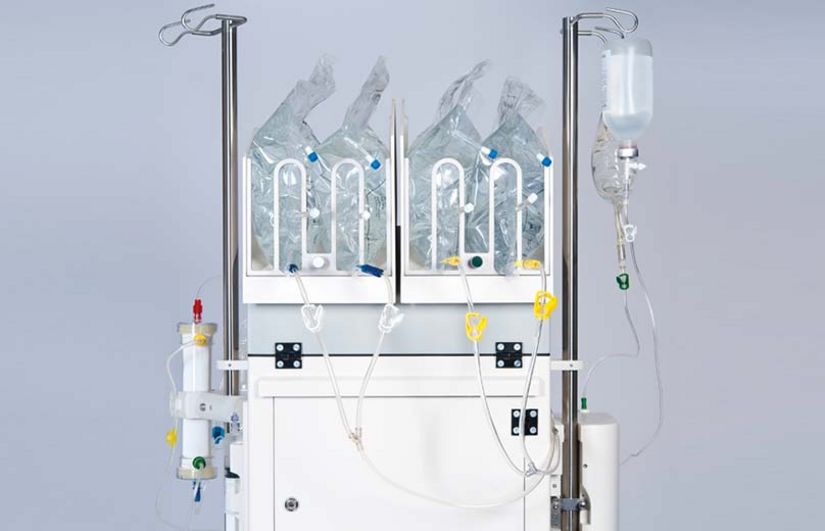

    • Back of multiFiltrate acute therapy machine

      Back of multiFiltrate acute therapy machine

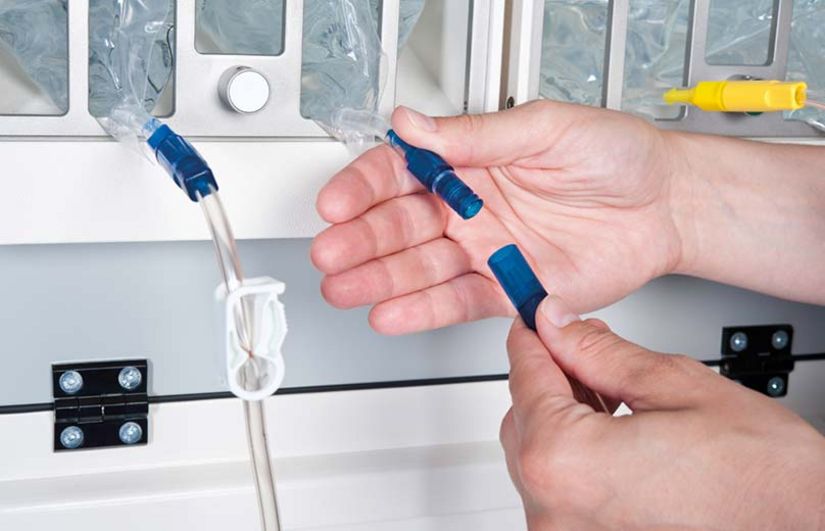

    • Standard solution Connector for multiFiltrate

      Solution connector for standard therapies on multiFiltrate acute therapy machine

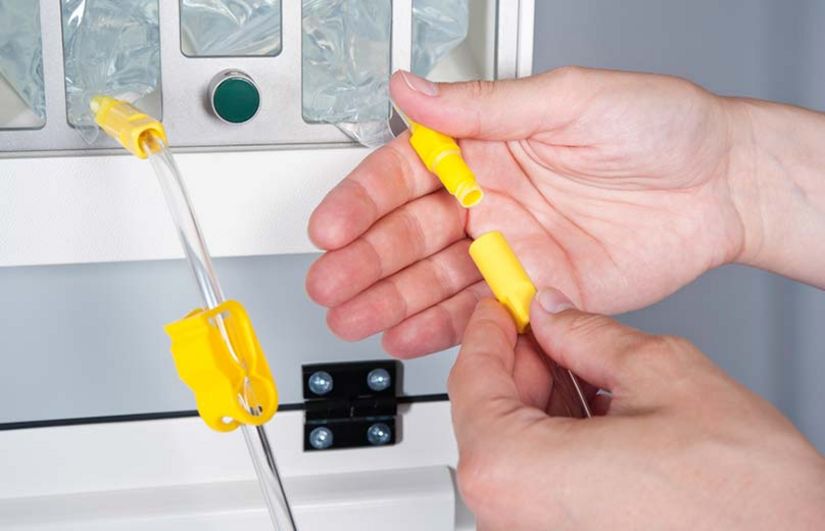

    • Ci-Ca® solution Connector for multiFiltrate

      Solution connector for Ci-Ca® therapies on multiFiltrate acute therapy machine

    Therapy kits

    Complete kits for multiFiltrate

    The multiFiltrate kits contain:

    • multiFiltrate cassette (AV-set and filtrate system pre-assembled) or volume-reduced midi AV-set or pediatric system with very low extracorporeal blood volume
    • Substituate and/or dialysate system (depends on therapy mode)
    • Hemofilter or plasmafilter

    A multiFiltrate cassette consists of arterial, venous, and filtrate lines. This allows easy installation of the tubing system required for each treatment.

    The combination of the multiFiltrate cassette with treatment-specific tubing systems enables the multiFiltrate to be set up quickly and efficiently.

    Treatment kit options for multiFiltrate therapies

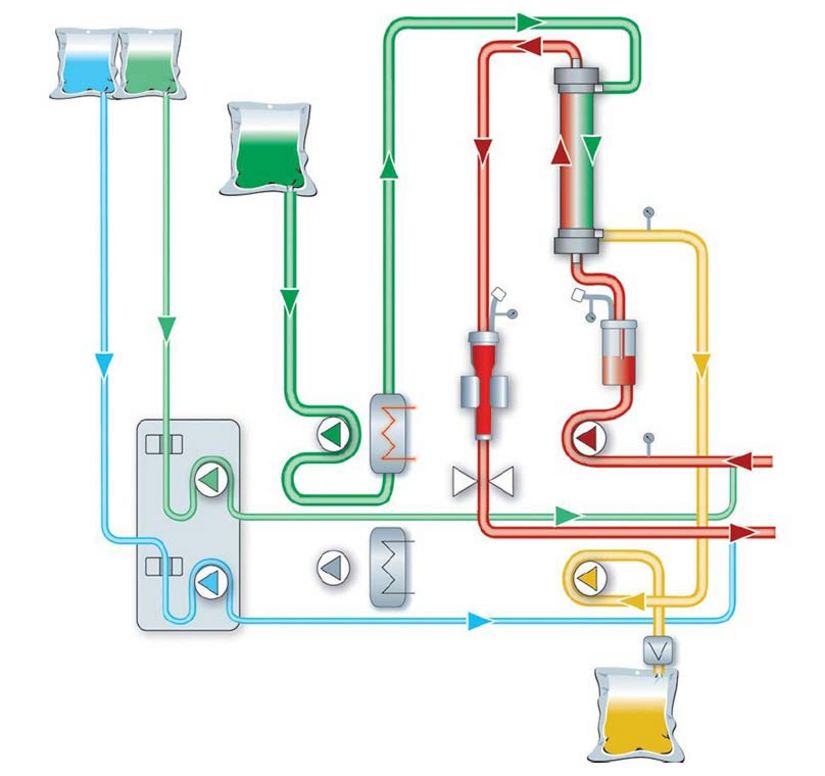

    Ci-Ca® CVVHD

    Ci-Ca® CVVHD:

    • multiFiltrate – kit Ci-Ca® CVVHD 1000
    • multiFiltrate – Kit Ci-Ca® CVVHD EMiC®2

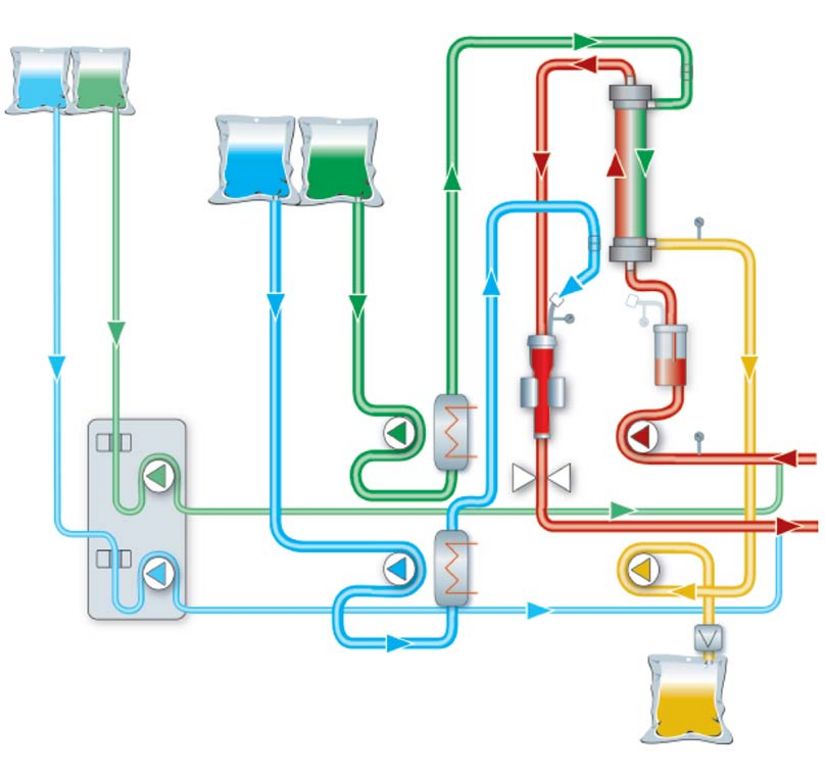

    Ci-Ca® post-CVVHDF schema

    Ci-Ca® post-CVVHDF:

    • multiFiltrate – Kit Ci-Ca® postCVVHDF 1000

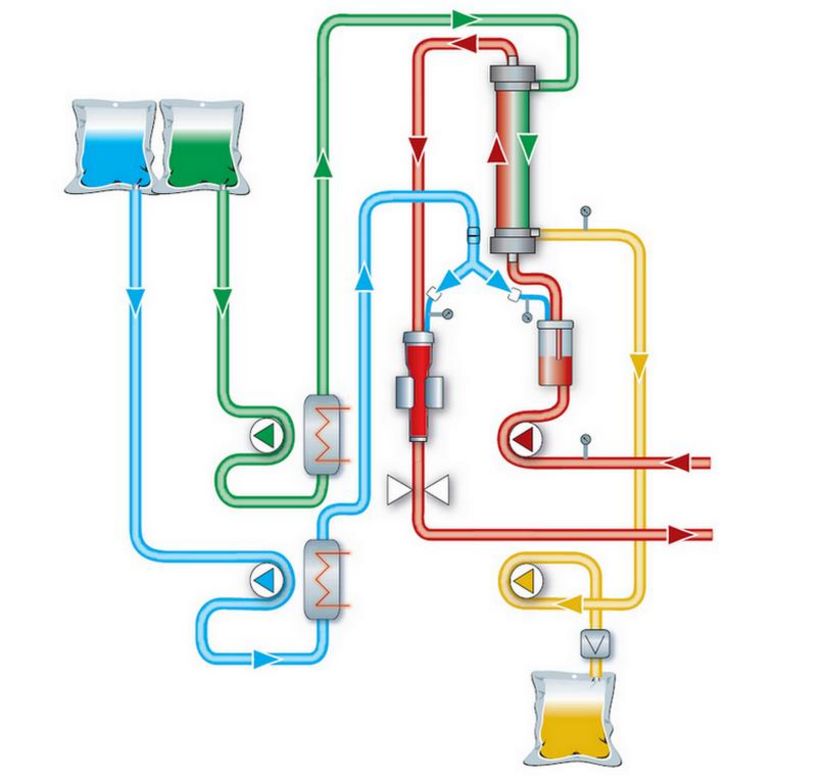

    CVVHDF schema

    CVVHDF:

    • multiFiltrate – Kit 8 CVVHDF 1000
    • multiFiltrate – Kit 4 CVVHDF 600
    • multiFiltrate – Kit midi CVVHDF 400

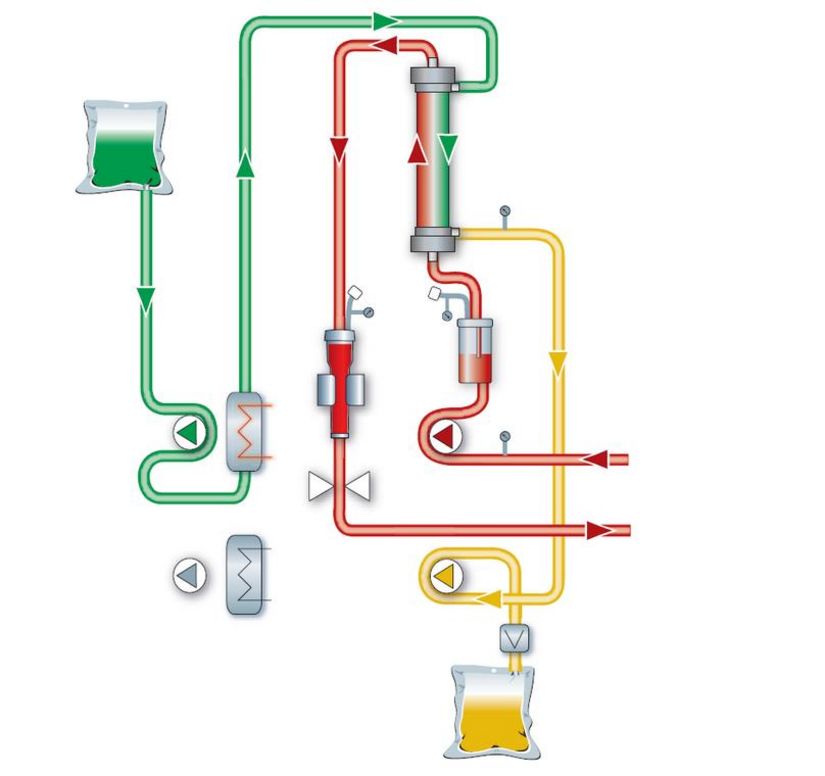

    CVVHD schema

    CVVHD:

    • multiFiltrate – Kit CVVHD EMiC®2
    • multiFiltrate – Kit 3 CVVHD 600

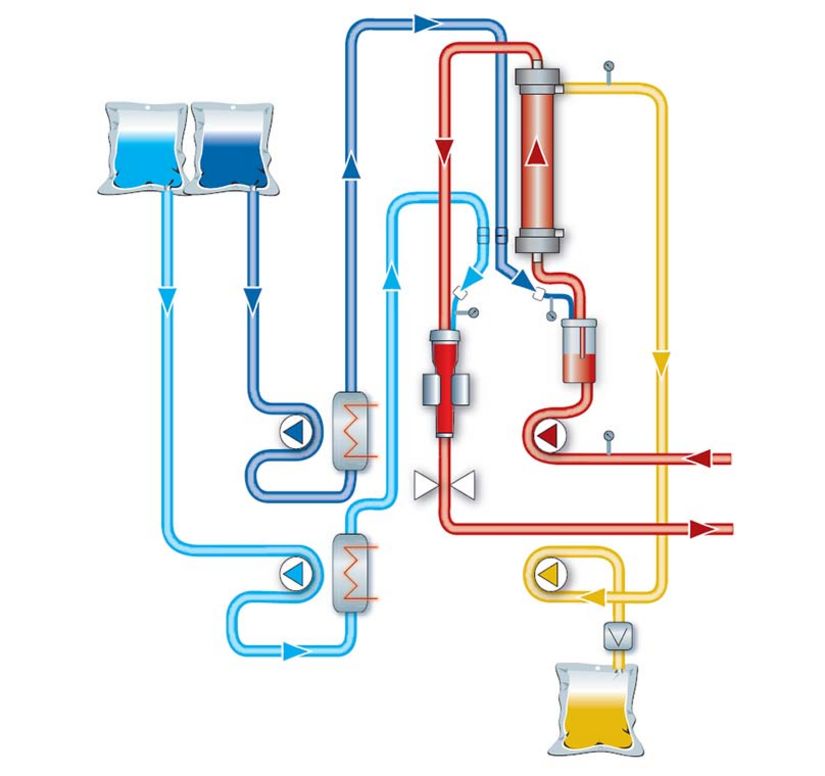

    Pre-post CVVH schema

    Pre-post CVVH:

    • multiFiltrate – Kit 7 HV-CVVH 1000 (High-Volume CVVH)
    • multiFiltrate – Kit 5 pre-post CVVH 600 (High-Volume CVVH)

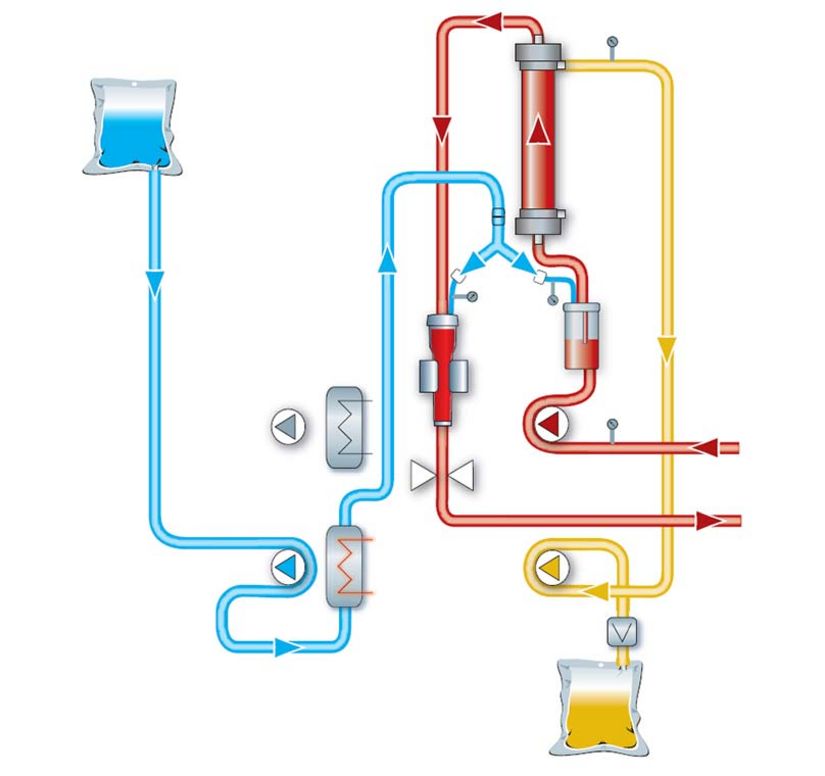

    CVVH schema

    CVVH:

    • multiFiltrate – Kit 9 CVVH 1000
    • multiFiltrate – Kit 2 CVVH 600

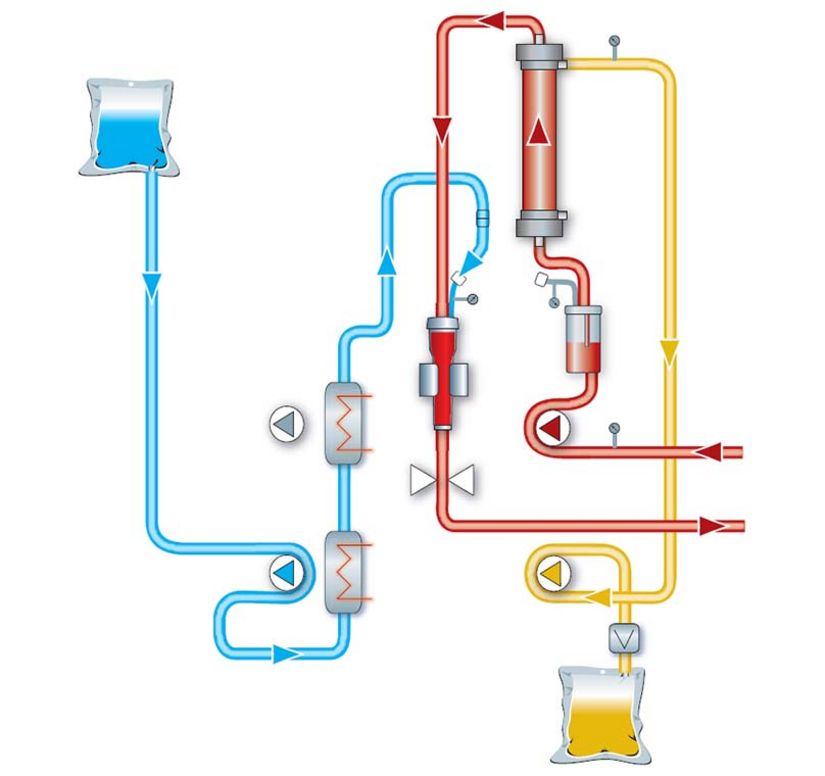

    MPS schema

    MPS:

    • multiFiltrate – Kit 16 MPS P2dry
    • multiFiltrate – Kit MPS P1dry

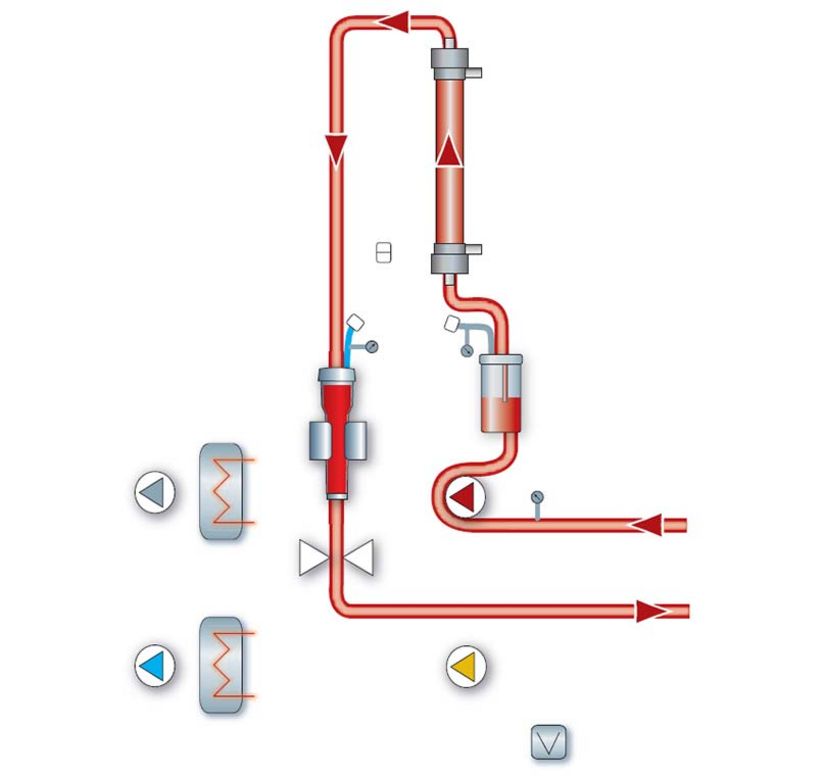

    HP schema

    HP:

    • All treatment kits

    Hemoperfusion as blood purification therapy is available with the multiFiltrate simply by using a multiFiltrate cassette and an adequate adsorption cartridge.

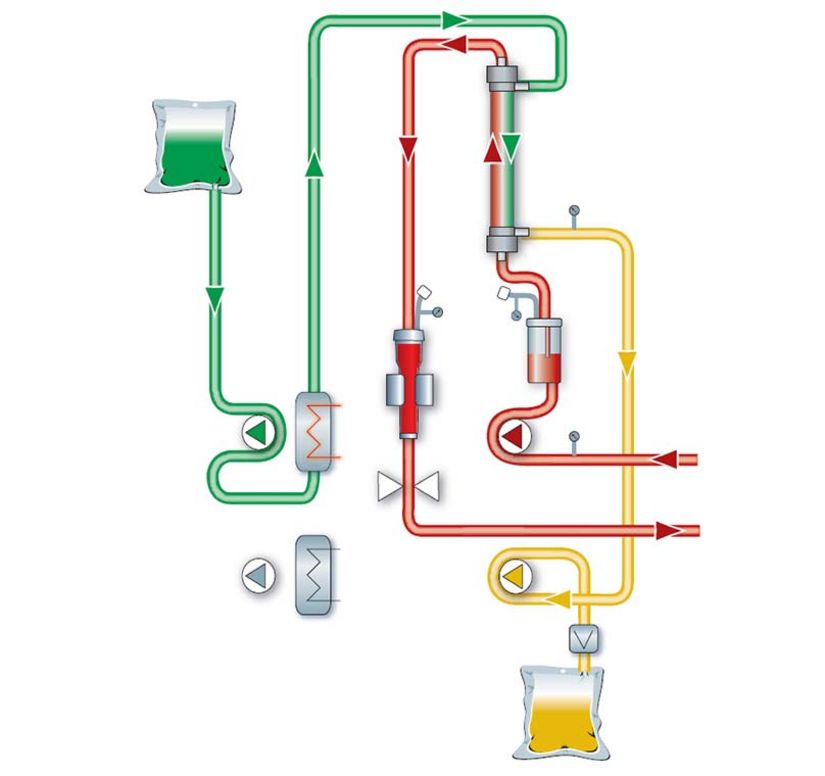

    Pediatric CVVHD schema

    Pediatric CVVHD:

    • multiFiltrate – Kit paed CRRT/SCUF

    The Ultraflux® AVpaed hemofilter combined with special volume reduced lines is used to perform pediatric CVVHD.

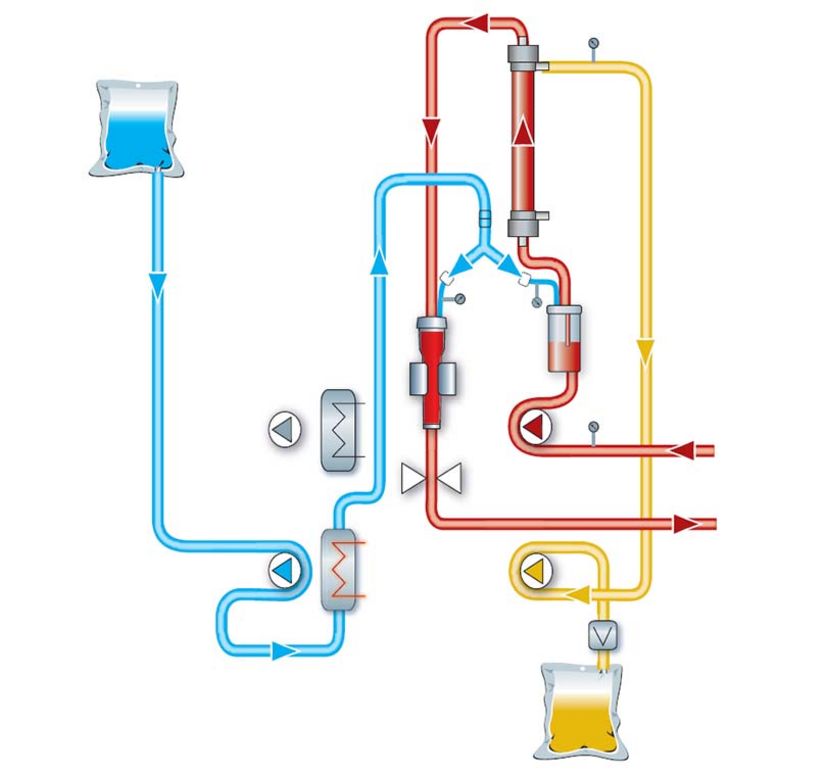

    Pediatric CVVH schema

    Pediatric CVVH:

    • multiFiltrate – Kit paed CRRT/SCUF

    The Ultraflux® AVpaed hemofilter combined with special volume reduced lines is used to perform pediatric CVVH in post- or predilution.

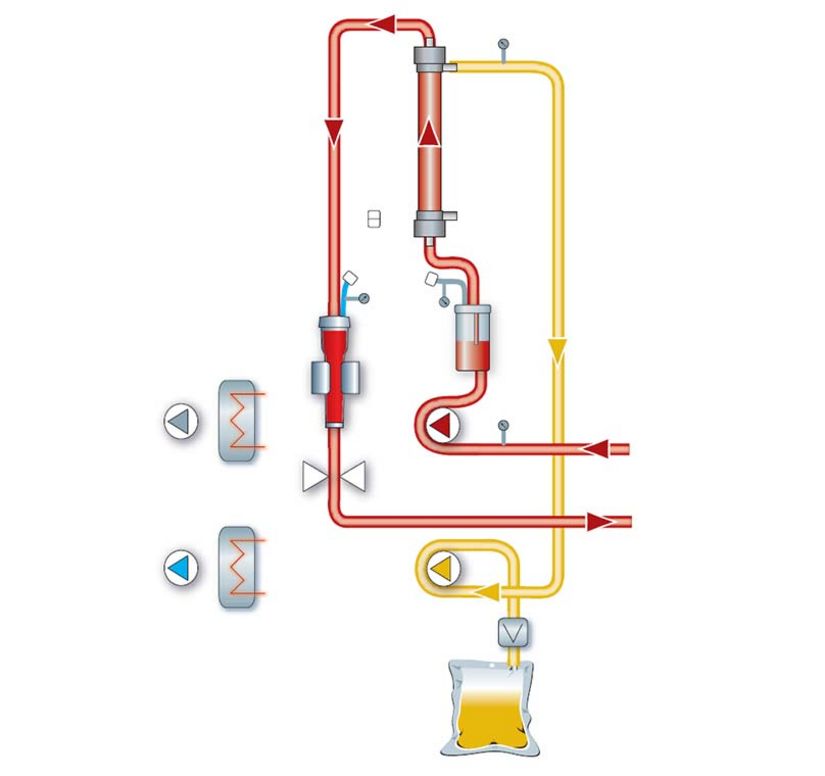

    SCUF schema

    SCUF:

    • multiFiltrate – Kit paed CRRT/SCUF

    The combination of a small Ultraflux® AV hemofilter and the pediatric lines with very low extracorporeal blood volume enables the user to perform an efficient continuous ultrafiltration for adult and pediatric patients.

    Kit guideline chart Tubing system CVVHD CVVHDF CVVH MPS SCUF HP
    multiFiltrate – Kit Ci-Ca® CVVHD 1000 cassette o
    multiFiltrate – Kit Ci-Ca® CVVHD EMiC®2 cassette o
    multiFiltrate – Kit Ci-Ca® postCVVHDF 1000 cassette   o
    multiFiltrate – Kit 8 CVVHDF 1000 cassette x o x     x
    multiFiltrate – Kit 4 CVVHDF 1000 cassette x o x     x
    multiFiltrate – Kit midi CVVHDF 400 midl x o x     x
    multiFiltrate – Kit 9 CVVH 1000 cassette     o     x
    multiFiltrate – Kit 2 CVVH 600 cassette     o     x
    multiFiltrate – Kit 7 HV-CVVH 1000 cassette     o     x
    multiFiltrate – Kit 5 pre-post CWH 600 cassette     o     x
    multiFiltrate – Kit CWHD EMC®2 cassette o         x
    multiFiltrate – Kit 3 CWHD 600 cassette o         x
    multiFiltrate – Kit paed CRRT/SCUF paed o   o   o
    multiFiltrate – Kit 16 MPS P2dry cassette       o   x
    multiFiltrate – Kit 16 IS MPS P2dry         o   x
    multiFiltrate – Kit MPS P1dry midl       o   x

    o = Dedicated usage
    x = Alternative usage - some of the induded lines will not be used

    Technology

    Well-designed user interface on the multiFiltrate

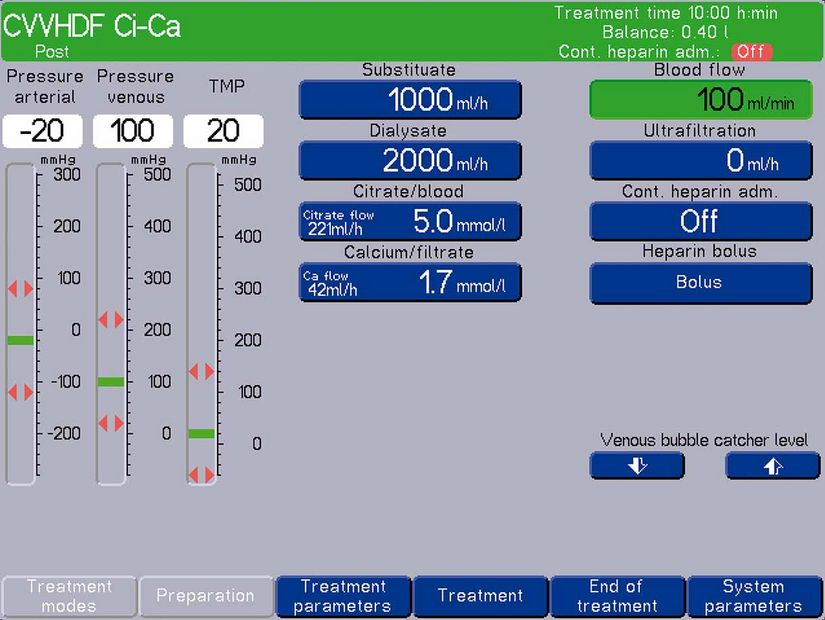

    Standard settings for the multiFiltrate Ci-Ca® postCVVHDF

    Display of the multiFiltrate Ci-Ca® postCVVHDF during the treatment, illustrated with the standard settings

    • Step-by-step setup instructions
    • Easy guidance for bag changes
    • Standard settings to ease startup
    • No manual calculations necessary

    Ci-Ca® therapy with integrated Ci-Ca® module

    • Fulfils the highest clinical and technical standards
    • Ci-Ca® tubes guided on the cassette
    • Color coding for intuitive setup
    • Different connectors for citrate and calcium to avoid mix-up of bags
    • Citrate and calcium flow coupled with blood and filtrate flows
    • Integrated in balancing system

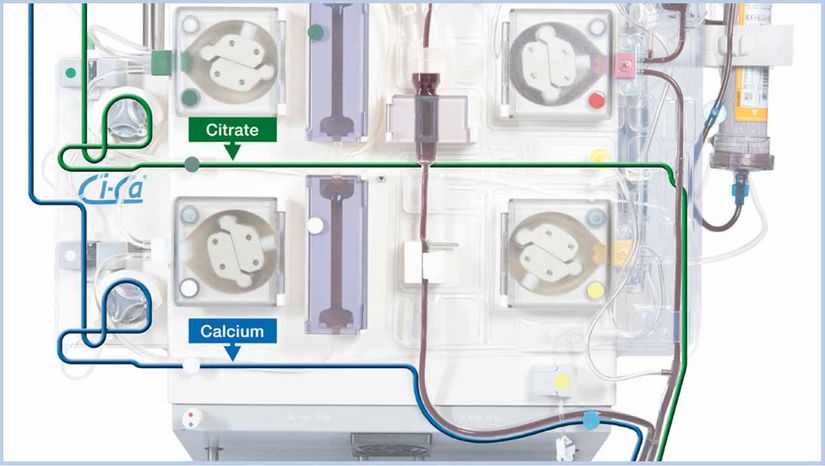

    Ci-Ca® tubes guided on the cassette

    Ci-Ca® tubes guided on the cassette

    Citrate and calcium flow coupled with blood and filtrate flows

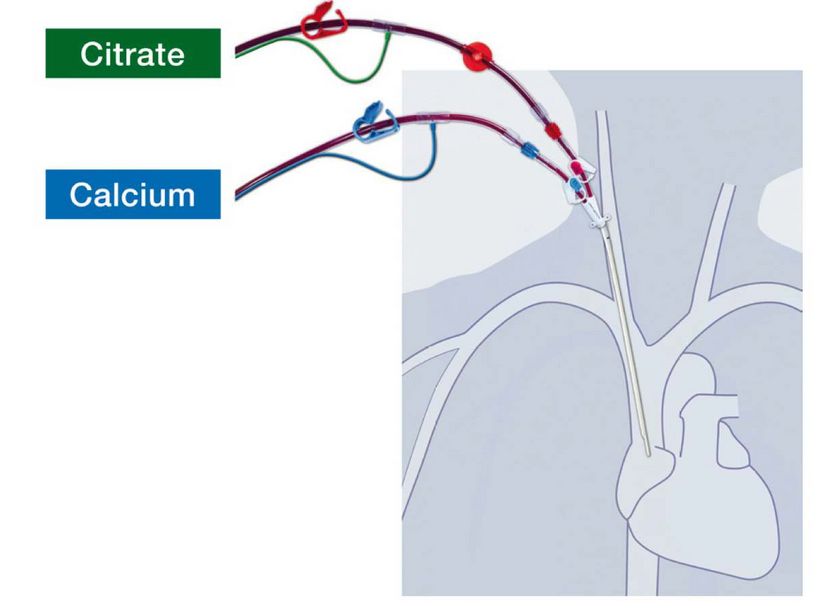

    Citrate and calcium infusion for multiFiltrate

    Citrate and calcium infusion always fed into the correct branch of the catheter due to fixed connections

    multiDataLink

    You can easily connect the multiFiltrate to the IT network and patient data management system (PDMS) in your hospital. This allows you to transfer treatment settings automatically to the IT network.

    The benefits

    • Quality assurance with assessment of treatment data.
    • Detailed documentation, such as display of individual fluid balances.
    • Data retrieval at multiple locations using network interfaces.

    Advanced technology means

    • Programmed pre-set therapy settings.
    • Intelligent and intuitive user interface.
    • Patient blood detection using an optical blood sensor.
    • Precise fluid balance monitoring (with balance accumulated since last reading).
    • Pressure monitoring of the entire extracorporeal circuit.
    • Effective integrated temperature control.
    • Reliable operation, optimized for use of central venous catheters.
    • Structured alarm handling with integrated help functions.
    • Emergency stop for immediate halting of all pumps.

    Complex system, simple service

    The multiFiltrate is as simple to maintain as it is to use. Diagnostic programs specific to the device as well as our well-trained technicians assist in maintenance. Special maintenance actions guarantee above-average equipment availability. This saves you costs and ensures satisfaction.

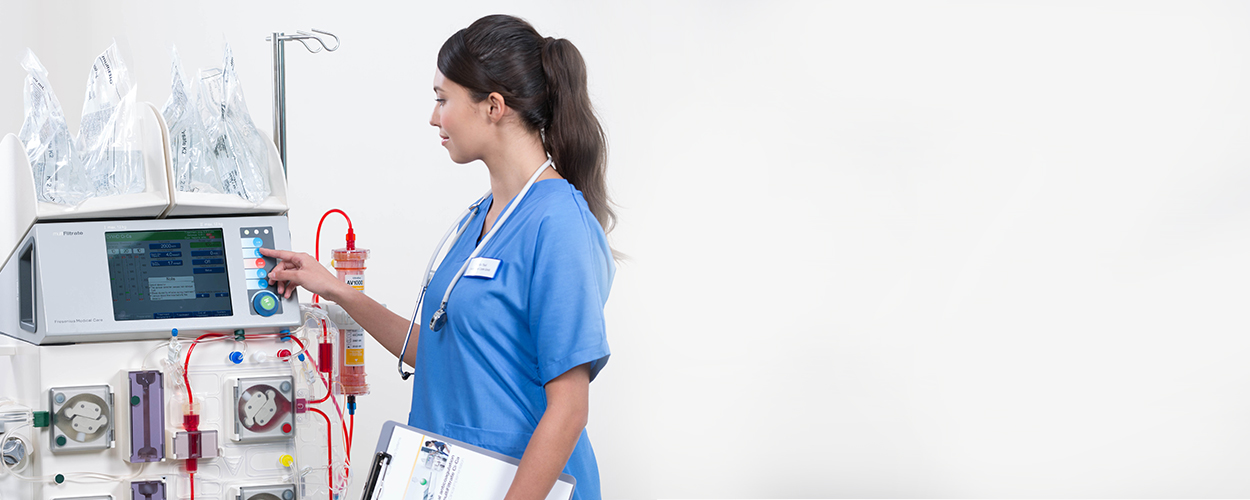

    Nurse operating a multiFiltrate machine
    Continuous renal replacement therapy set-ups

    Different options as standard therapies for acute kidney injury.
